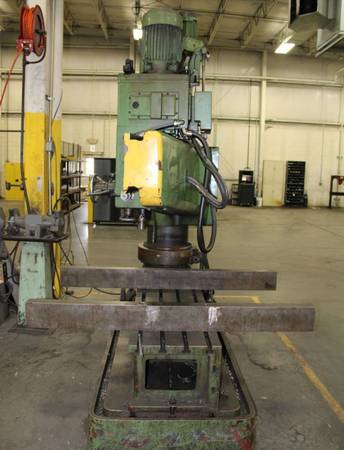

Kao Ming KMR-1600DH Hydraulic Radial Drill 60mm Drill & Tap/180 Boring - $9,995
QR Code Link to This Post

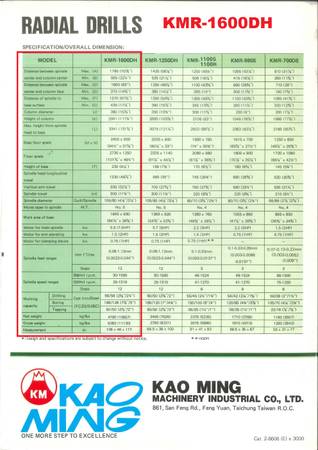

Technical Specifications:
• Radial Arm Drill (with Table)
• Make: Kao Ming (Taiwan)
• Model: KMR-1600 DH
• Working Arm Length: 1600 MM
• Drilling Capacity: 60 MM
• Spindle Taper: MT 5
• Clamping: Hydraulic
• Spindle Speeds: 30-1580 RPM

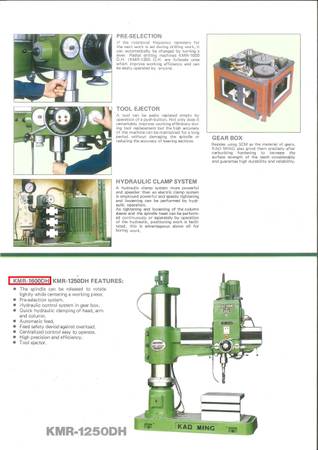

Features:
Spindle can be released to lightly rotate during workpiece centering
Pre-selection system
Gearbox controlled by hydraulic system
Quick hydraulic clamping system for head, arm and column
Automatic feed
Safety feeding device against overload
Centralized control for easy operations
High precision and great efficiency
Hydraulic tool ejector
TRAVELS METRIC IMPERIAL
Spindle head longitudinal travel: 1200 mm 47.24"
Vertical arm travel: 900 mm 35.43"
Spindle center to column center: 565 -1795 mm 22.24 - 70.66"
Spindle center to column face: 370 - 1600 mm 14.56 - 62.99"
Spindle end to work base surface: 450 - 1650 mm 17.71 - 64.96"
Work base surface area: 1643 x 930 mm 64.68 x 36.61"
Column diameter: ø390 mm ø15.35"
Column height: 3050 mm 120.07"
Max height spindle head to floor: 3450 mm 135.82"
Box table L x W x H: 500 x 750 x 400 19.68 x 29.52 x 15.74"
SPINDLE
Taper: MT5 MT5
Speed range: 30 - 1580 rpm 30 - 1580 rpm
Number of speeds: 12-step 12-step
Feed range: 0.06-1.12 mm/rev 0.0025-0.045"/rev
Number of feeds: 12-step 12-step
Spindle travel: 300 mm 11.81"
Quill diameter: 105 mm 4.13"
WORKING CAPACITY
Drilling (cast iron / steel): 66 / 56 mm 2.59" / 2.20"
Boring (cast iron / steel): 186 / 126 mm 7.32" / 4.96"
Tapping (cast iron / steel): 60 / 50 mm 2.36" / 1.96"
MOTORS
Main spindle motor: 5.5kW 7.5hp
Arm elevating motor: 1.5 kW 2hp
Clamping device motor: 0.75 kW 1hp
GENERAL
Electrical rating: 600V 10Amp 3Ph 60Hz
Electrical approval: CSA SPE-1000
PHSR exemption letter: valid in Ontario
Net weight: 4790 kg 10560 lbs
Overall Dimensions (H x W x L): 2743 x 1168 x 2971mm 108"H x 46"W x 117"L
YOUR COST: $9,995.00
