Leslie 22H Speaker (Serial # 21704) - $1,300

Leslie 22H Speaker (Serial # 21704) 1 thumbnail

condition: excellent

make / manufacturer: Leslie

model name / number: 22H

size / dimensions: 41" x 29" x 20.5"

QR Code Link to This Post

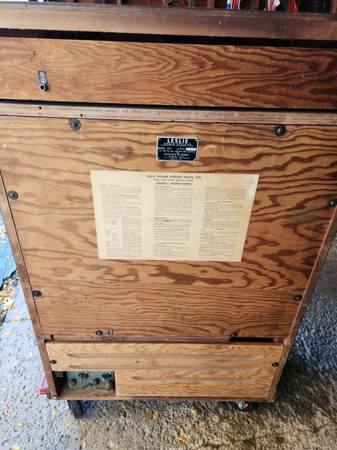

Up for sale is a Leslie 22H (Serial # 21704) Speaker which puts it in the 1959 age range. This is a 50 year plus old item and has steel serial label in place. Everything is in place along with oil tubes on the back panels. This is a single speed model. Here are the specs

Model 22H

Cabinet: Wood
Dimensions:Unknown
Rotors: 2- Bass/Treble

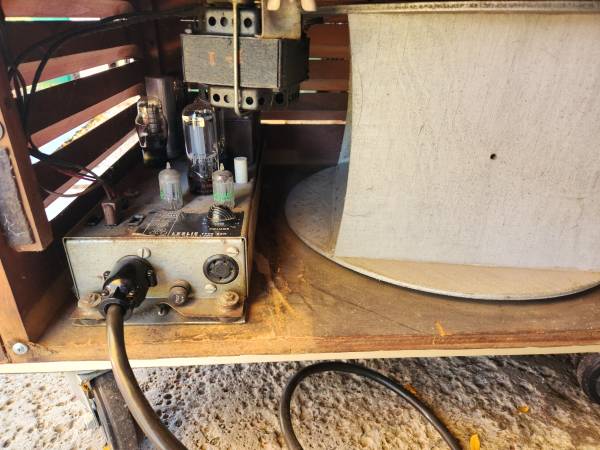

Amplifiers: Tube 40 watt w/ 2-6550 finals
Speeds: Fast-Stop
Speakers: O,P
Belts: A,B
Motor-fast: 1,1
Motor-slow: none

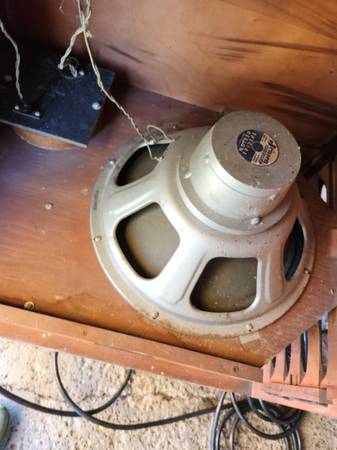

Notes: Identical in appearance to the 122. Single speed. Has 15"
Permanent Magnet Jensen P15LL, and 3/4" Jensen driver. First
generation of modern amplifier using 6550 output tubes and 0C3
regulator. First series below serial 21500 uses 5U4 rectifier section,
amplifier rated at 35 watts. Later series serial 21500 to 24500 uses
diode rectifier section, amplifier rated at 40 watts.
Hookup: 6A

Due to the vintage nature and applications of this item beyond my control I am selling this working Leslie as pictured. if you have ANY questions or concerns don't hesitate to ask me. Be upfront and honest with me and I will do my best to extend the same courtesy to you
