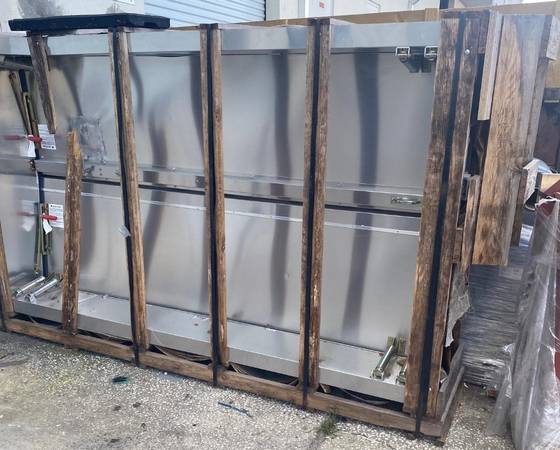

Bilco D-50 Aluminum Roof Hatch - Equipment Access - New Surplus, Qty 6 - $6,475
QR Code Link to This Post
ORIGINAL COST: $9,195.00/Each, YOUR COST: $6,475.00/Each
MAKE ME AN OFFER FOR ALL (6) UNITS!
- They will fit a 4’-10” x 8’-10” rough opening
(provides a convenient way to install or remove large pieces
of equipment from a building).
- They have a hinged toggle clamp that automatically locks when the hatch is closed.
(Note: Unit cannot be opened from underside while toggle clamps are engaged)
- This feature along with the curb attachment to the structural
has gotten a 78 PSF design rating for uplift and engineering,
so it meets the Florida Building Code minimum standards.
- This product may be installed on either a flat or sloping roof.
When installed on a slope, the hinge side must run parallel with the slope.
Slope must not exceed 30 degrees.
Specifications:
- Frame is 11 Gauge Aluminum w/Capflashing (Corners Full Welded)
- Pintle Hinge
- Gasket (all around the cover)
- Cover is 11 Gauge Aluminum
- Cover Liner is 18 Gauge Aluminum
- Spring Lift Mechanism
- Curb Insulation - 1" Fiberboard
- Two Point Latch Enclosure (Same mat'l as cover)
- Inside & Outside Handles w/Padlock Hasps
- Arm Guide Bracket
- Cover Insulation - 1" Fiberglass
- Hold Open Arm w/Red Vinyl Grip
- Neoprene Gasket
- Guide Arm (If required)
- BILCLIP Flashing System
- Lock Strike
- CL-500-PA & CL-500-PAA Exterior Toggle Clamps
(2 Req'd, 1 @ Each End)
Shop Finish:
Cover: Mill Finish
Frame: Mill Finish
Hardware: Non-Corrosive Materials
(Unless Otherwise Specified)
Overall Dimensions: 9'-5"L x 5'-5"W
Curb: 12" High
Weight: 462 lbs. Each
NOTE: IN STOCK, READY TO LOAD ONTO YOUR TRUCK!
Freight Rates Are Available (Need Zip Code)
