(3) Twister T4 Trimmers w/ Speed Control & Leaf Collectors & Conveyors - $16,975 (Walworth)
QR Code Link to This Post
#2, Qty 1: Twister T4 Trimmer Quality Control Conveyor System
#3, Qty 1: Twister T4 Trimmer Feed Control Conveyor System
============================================
Description for Items #1, #2 & #3 Above:

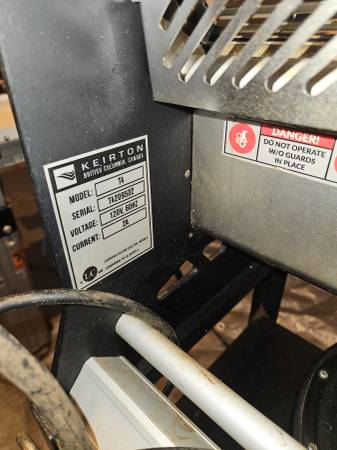

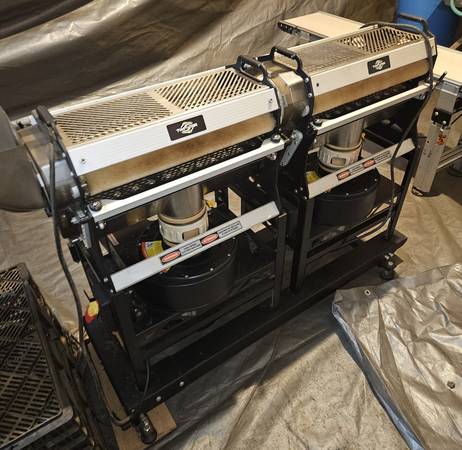

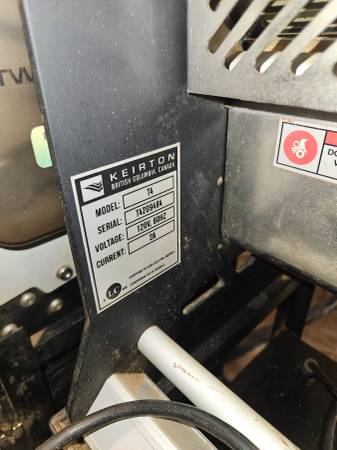

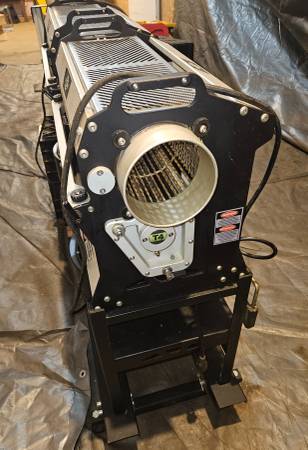

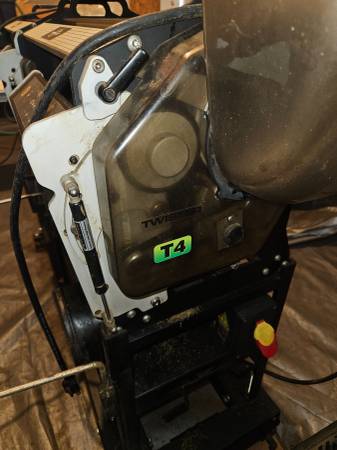

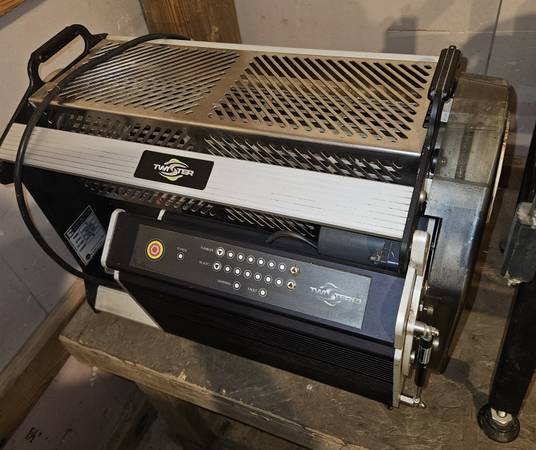

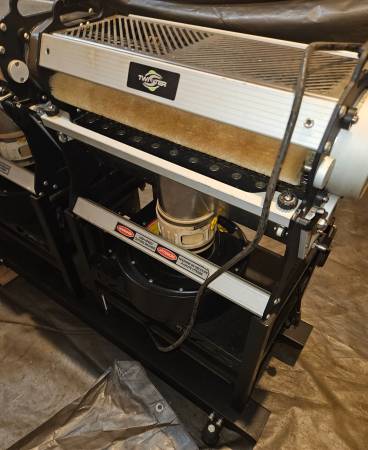

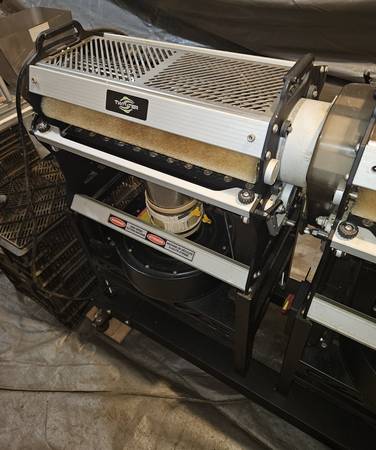

Qty 3: Twister T4 Trimmers

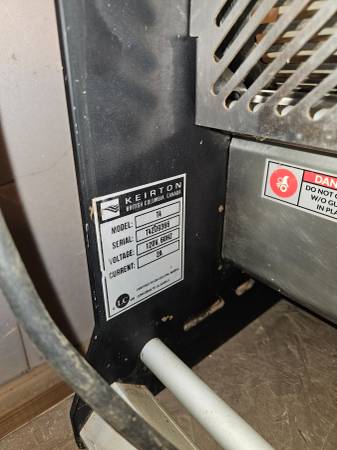

Model: T4, S/N: T4209502, T4309484 & T4209366
Voltage: 120V, 60Hz, 1Ph., Current: 2A
Twister T4 Trimmer Specs:
Input Voltage: 115V
Current Draw: 2A
Blade Motor: 200W / 0.25HP
Tumbler Motor: 6W / 1/125HP
Connector (Plug): NEMA 5-15P
Weight: 58lbs / 26.3kg
Length: 25in / 63.5cm
Width: 15in / 38.1cm
Height: 16.5in / 42cm
Shipping Weight: 74lbs / 33.6kg

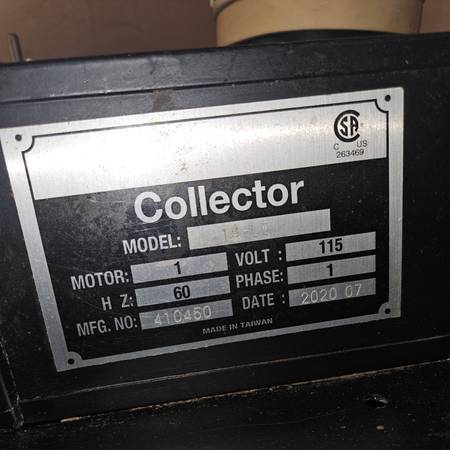

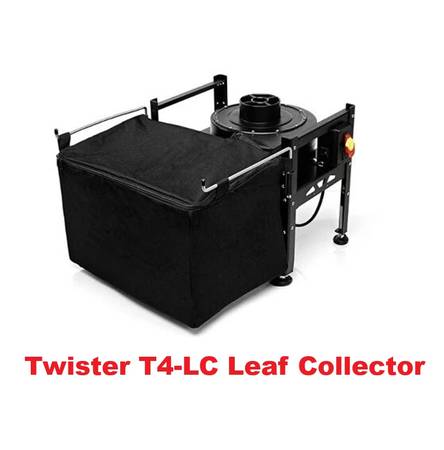

Twister T4-LC Leaf Collector Specs:
Input Voltage: 115V

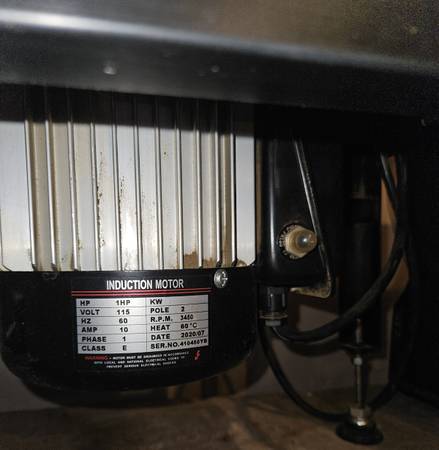

Motor: 1 hp
Amps (running): 10
Amps (startup): 53
Motor Speed: 3450 RPM
Airflow Capacity: 1190 CFM
Static Pressure: 6.45 in H2O
Impeller: 10″/25.4cm
Inlet (cyclone): 5 1/2″ / 139.7mm
Height: 19in / 48.3cm
Weight: 58lbs / 26.3kg
Circuit Breaker Required: 15A / 120V
Connector (plug): NEMA 5-15P
Sound Rating: 77 db
Fused: Yes
Part#: T4-LC
Maintenance: Clean impeller housing frequently, clean filter bag.
Extension Cord Gauge: 12AWG MINIMUM Extension Cord
Length: 25′ / 7.6m MAXIMUM. *** Failure to meet these min.
requirements can cause damage
Twister T4 Throughput Specs:
The T4 is the only medical cannabis trimming machine on the planet designed
to run in configurations up to three in a row, for a total production speed
of up to 78 lbs/hr! Start with one, add a second, and when you’re ready
slide in the third! No additional labor required!
T4's Type Feed Rates (up to)
1 Wet 23 Lbs./Hr, 11 kg/hr
2 Wet 52 Lbs./Hr, 24 kg/hr
3 Wet 78Lbs./Hr, 36 kg/hr
1 Dry 7 Lbs./Hr, 3 kg/hr
2 Dry 16 Lbs./Hr, 7 kg/hr

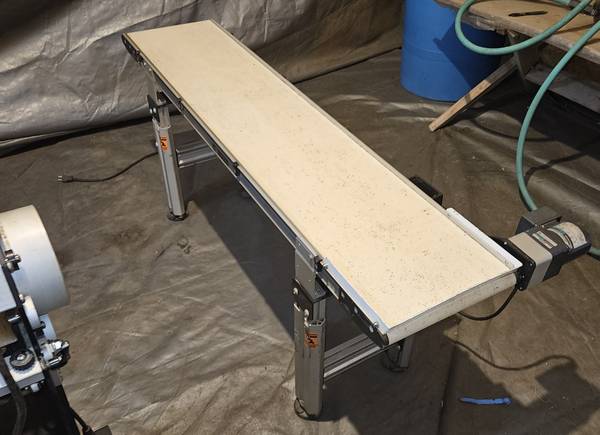

Qty 1: Twister Trimmer Quality Control Conveyor System
Qty 1: Twister Trimmer Feed Control Conveyor System
Control Conveyors
Description: Specification:
Length 60" QC, 60" Feed
Width (Belt) 12" QC, 3-3/4" Feed
Width (Total) 13" QC, 13" Feed
Shipping Dimension 64" x 17" x 5" QC, 64" x 9" x 5" Feed
Shipping Weight 84 lbs QC, 45 lbs Feed
Input Voltage 115V QC, 115V Feed
Amps 1A QC, 1A Feed
Standard QC Height 20-24in QC, 23-33in Feed
NOTE: QC belt needs replacing.
*Increase your flower’s market value by reducing product loss, removing
defective flower and increasing your throughput with fewer people required.
*FDA-Approved QC Conveyor. The Twister QC Conveyor makes quality control a
breeze by providing an unmatched ability to visually inspect, touch up
or reject any and every flower.
*Keep Things Moving. The Twister Feed Conveyor makes it easy to ensure the
machine is always being fed with the right amount of flowers, hour after hour.
No downtime. No lag.
*Use Conveyors with the Twister T4. Twister Conveyors are adjustable
in height and a perfect match for the Twister T4.
Features:
*Eliminate product loss and keep your conveyor running efficiently with
sidewalls designed to overlap the belt. No loose product gets caught under
the sidewalls or lost under the belt.

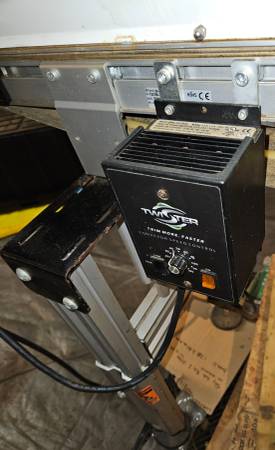

*Easy-to-use variable speed belt adjustment gets the optimum amount of
throughput into the trimmer consistently.
*Toolless height adjustment allows you to easily increase height when
using a rail system to speed up throughput.
*A one-piece bed, smooth surfaces, and seamless design eliminate cracks,
crevices, and hollow extrusions that are susceptible to contamination
*Wheels and lock casters allow easy moveability for cleaning in different locations
*Meet QA standards and save time with a simple finish wipe down
NOTE: TOTAL COST FOR ITEMS #1 (3), #2 (1) & #3 (1) = $16,975.00
