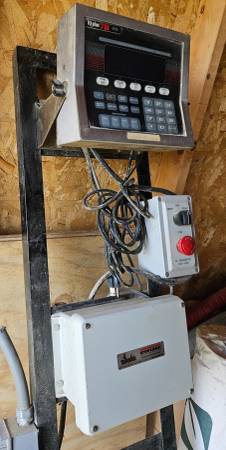

Rice Lake IQ Plus 710 Digital Weight Indicator w/(4) 2.5K Load Cells - $1,775 (Macedon)
condition:
excellent
make / manufacturer:
Rice Lake Weighing Systems
model name / number:
IQ Plus 710-2A
QR Code Link to This Post

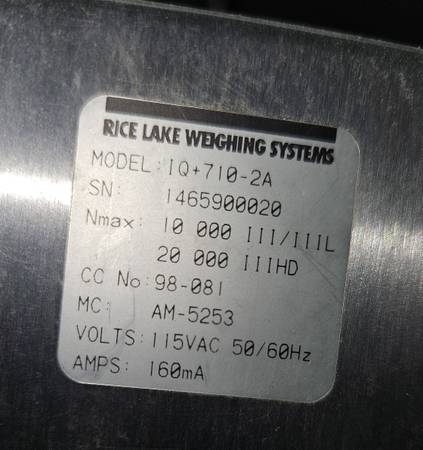

Model: IQ+710-2A, S/N: 1465900020
Nmax: 10 000 III/IIIL
20 000 IIIHD
CC No: 98-081
MC: AM-5253
Volts: 115VAC, 50/60 Hz
Amps: 160mA

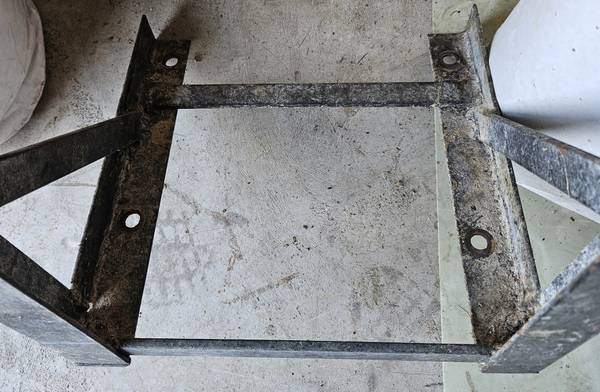

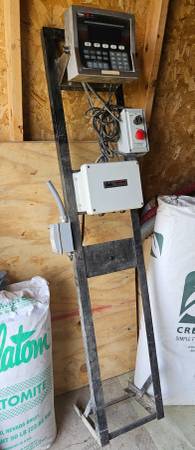

Qty 1: Rice Lake Heavy Duty Angle Iron Floorstand (Painted)
Note: Not free-standing, must be bolted to the floor.

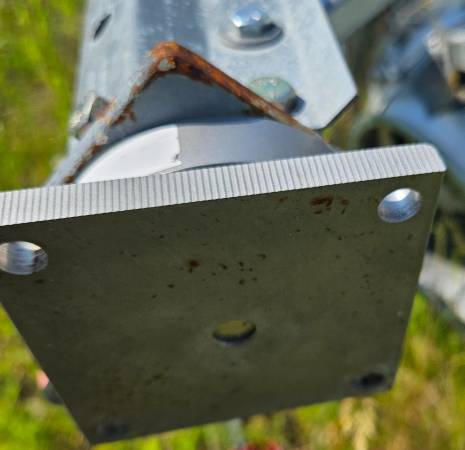

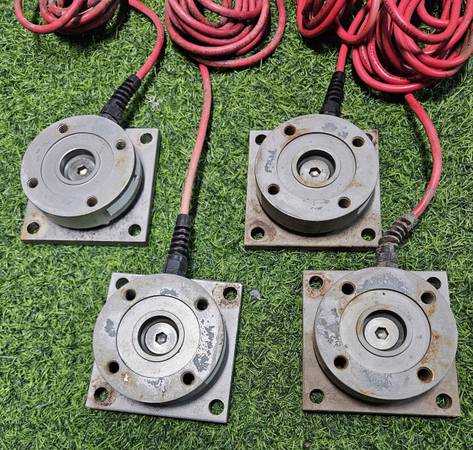

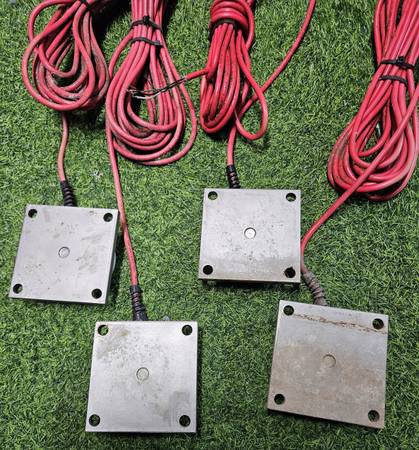

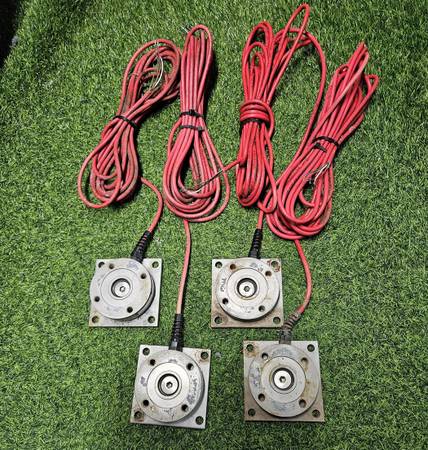

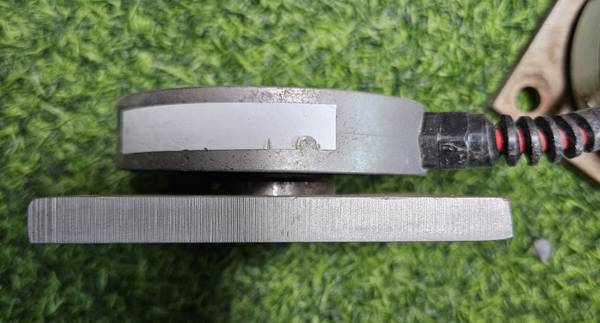

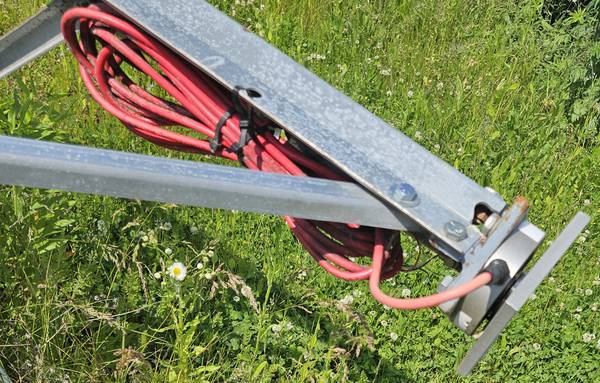

Qty 4: Rice Lake P/N: 84354 Pancake Load Cells, 2500 lb. Max. Each
84354|01 Mount Assy, RL9000TWM 2.5K 2500LB SST WS 3 MV/V 350 OHM 25 FT FM

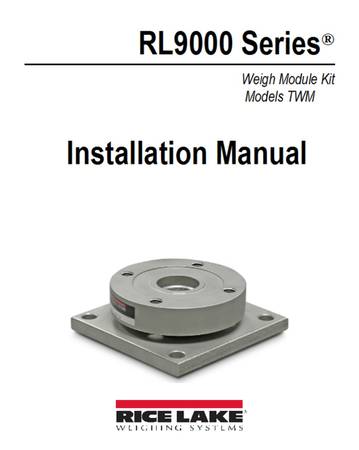

RL9000TWM Series Specifications:
Full Scale Output: 3.0 (± 0.1%) mV/V
Bridge Resistance: 350 Ohm
Material/Finish: Stainless steel
Temperature: Operating: 0 °F to 150 °F (-17 °C to 65 °C)
Seal Type: Welded-seal, IP67
Safe Overload: 150% full scale
Rated Excitation: 5 to 10 VDC
Nonlinearity: 1 to 100 K: 0.05% FS
Insulation Resistance: 5,000 megohm
Non-repeatability: 1 to 100 K: 0.02% full scale
Cable Length: 25 ft
Deflection at Capacity: 0.002in
Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

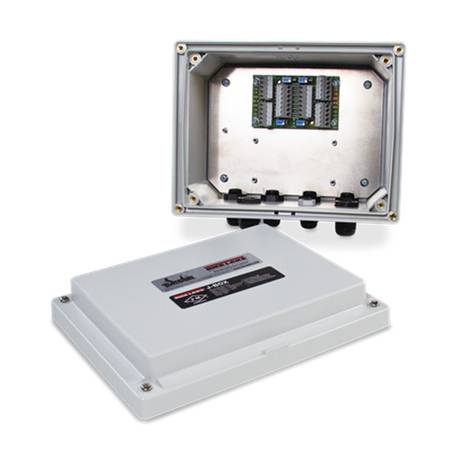

Qty 1: Rice Lake JB4SP TuffSeal Signal Trim Junction Box (Mounted to Floorstand)
P/N: 91780|01 J-Box, JB4SP 4 Channel Signal Trim with Expansion, Polycarbonate NEMA 4 FM
Ideal for use as a sub-junction box in a multiple modular system, the JB4SP TuffSeal® signal
trim junction box sums two or four single load cell outputs with the potential to expand through
the included expansion port. The Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
is optimal protection against harsh environments. The JB4SP TuffSeal signal trim junction box is
ideal for use in tank and hopper scale applications.

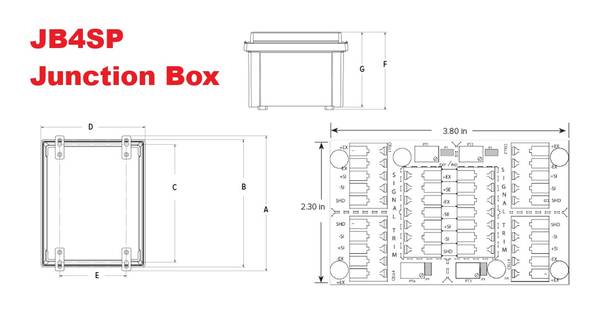

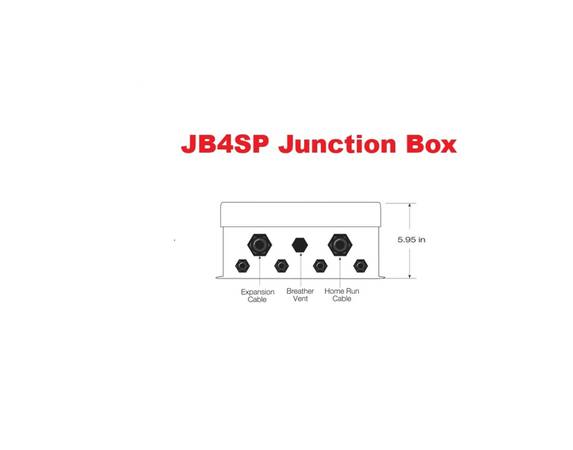

JB4SP TuffSeal Signal Trim Junction Box Specifications:
Cable Fittings:
(4) PG7 0.118 to 0.255 in strain relief
(2) PG11 0.197 to 0.394 in strain relief
Rating/Material: NEMA Type 4X/Polycarbonate with overlapping solid cover, stainless steel screws
Connectors: Spring clamp screwless, 12 to 28 AWG
Trimming: Individual cell, signal trim
Temperature: Operating: 0 °F to 122 °F (-18 °C to 50 °C)
Potentiometers: 100,000 ohm, 25-turn cermet
Circuit Board: 3.8 × 2.3 in, with conformal coating
Approvals: cFMus

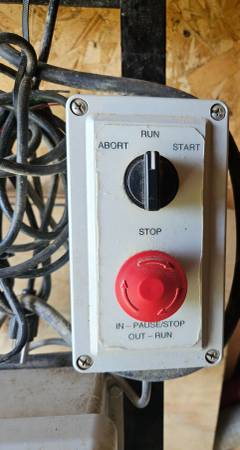

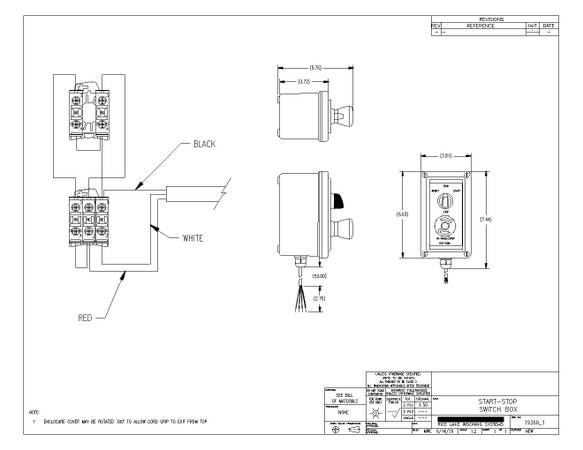

Qty 1: Rice Lake P/N: 19369 Start/Stop Remote Box (Mounted to Floorstand)
Ind Opt, Start/Stop ASSY External FRP NEMA 4X Box For Use Universal or Desktop units.
Includes: (1) Abort/Run/Start Switch & (1) Emergency Stop Pushbutton (In- Pauses/Stop, Out- Run)
