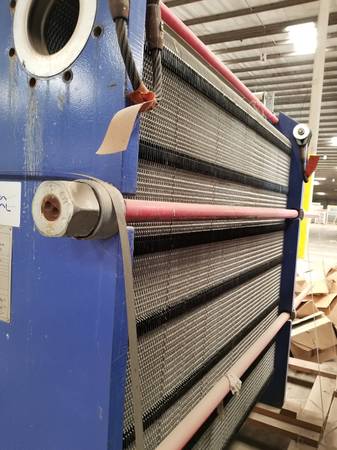

Alfa Laval M15-MFG Plate & Frame Heat Exchanger - $14,975
QR Code Link to This Post

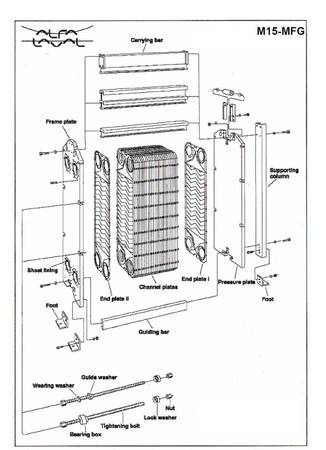

Model: M15-MFG
Year: 2009

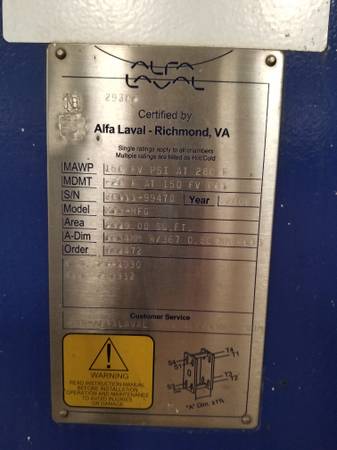

NB #29303
MAWP: 150 FV PSI @ 280 F
MDMT: -20F @ 150 FV PSI
Area: 2429.00 SQ-FT
Connection Material: Stainless Steel (Hot/Cold Side)
Plates: Single, Qty: 367, Free Channel: 0.16" (4.0mm)
Plate Material: Alloy 316, Thickness: 0.50mm
Gaskets: EPDMP Clip-ON
A-Dim: 1634MM (64.33") w/367 0.50MM Plates
Dimensions: 25.6"W x 76.4"H x 128.2"L
Net Weight: 4959 lbs. (w/H2O: 6923 lbs)
Excellent Condition!
======================================
ONLY (1) Available For Sale, Other (2) Were Sold.
