Triac EMI-300 Electric Actuator w/4-20 mA Positioner - $975 (Penfield)

‹ image 1 of 20 ›

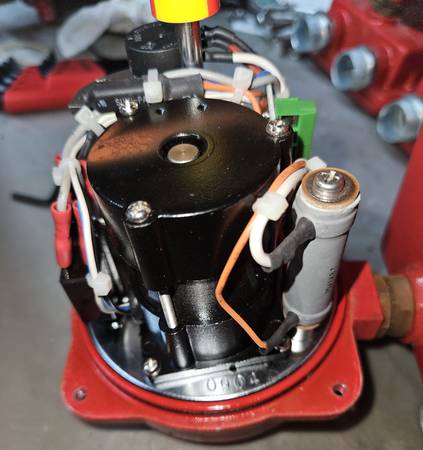

Triac EMI-300 Electric Actuator w/4-20 mA Positioner 1
Triac EMI-300 Electric Actuator w/4-20 mA Positioner 1 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 2 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 3 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 4 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 5 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 6 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 7 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 8 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 9 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 10 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 11 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 12 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 13 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 14 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 15 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 16 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 17 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 18 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 19 thumbnailTriac EMI-300 Electric Actuator w/4-20 mA Positioner 20 thumbnail
condition: like new
make / manufacturer: Triac Controls
model name / number: EMI-300

more ads by this seller

QR Code Link to This Post

Triac EMI-300 Quarter-Turn Electric Actuators
Type: Modulating Control (TMC2 Control Board)
Input Signal: 4-20 mA DC
Model: EMI-300
Torque Output: 300 In-Lbs.
Voltage: 120VAC/1Ph
Stall Amps: 0.6 Amps
Torque: 300 In-Lbs
Duty Cycle: 25%
Cycle Time: 12 Seconds/90 Degrees
Enclosure: NEMA 4/4X
Manual Override
Visual Position Indicator (Yellow/Open & Red/Closed)
ISO 5211 Mounting Pattern
(2) Auxiliary Limit Switches
Heater (Prevents Condensation Buildup)
Built-In Thermal Protection to Prevent Overheating Motor Windings
(248 Deg. F Thermal Setting)
Self-Locking EPI-Cyclical Gears (Eliminates the need for unreliable solenoid valves)

Your Cost: $975.00 Each
Qty Available: (4) In Stock
