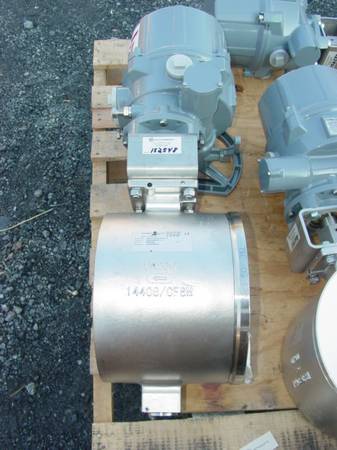

Schubert & Salzer 8" Type 4040 SS Electric Actuated Control Valves, 2 - $1,975
QR Code Link to This Post
8" 4040/200VE11111/UTQ60/MODEX
Ordering Code:
4040: Ball Sector Valve (Similar to: V-Ball or V-Port)
200: Nominal Size 8"
V: Valve, Cv = 1583, Port Opening: 6.1", Trim Characteristic: =%
E: Connection; Flangeless Design, ASME B16.5, ANSI 150
1: Material Combination; Seat Ring: PTFE; Ball Sector: CF8M Polished
1: Seal Combination; All Seals (P/N 13-16) from Viton, Medium Temp. 5F to +392F
1: Actuator Mounting Kit, DIN/ISO 5211
Actuator, Unitorq UTQ60/MODEX,1/4 Turn Electric Actuator - Modulating Service
Power: 110V/60Hz/1Phase, Protection: IP68, Date of Mfgr: 8/15
Valve Weight: 94 lbs + Actuator Weight: 56 lbs. = 150 lbs./each
High Cv Value: 1583
Excellent Control Characteristics, Equal Percent
Rangeability: 300:1
Suitable for Abrasive Media
Easily Exchangeable Seat Ring
Low Maintenance
Efficient and Easy to Install
ANSI 150 Wafer Style, Face-to-Face: 8.27"
Your Cost WAS: $4,275.00 EACH
YOUR COST NOW: $1,975 Each!
Qty 2 Available
