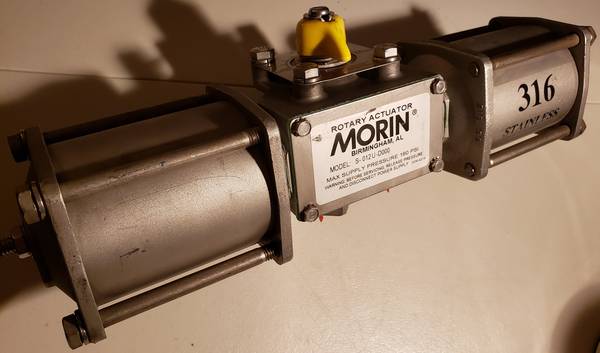

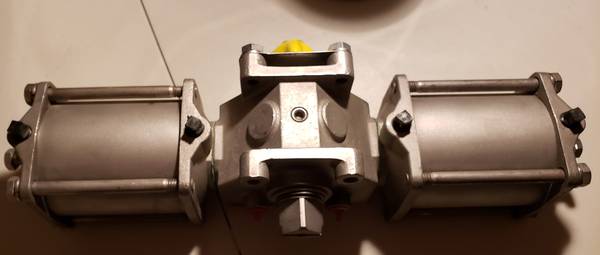

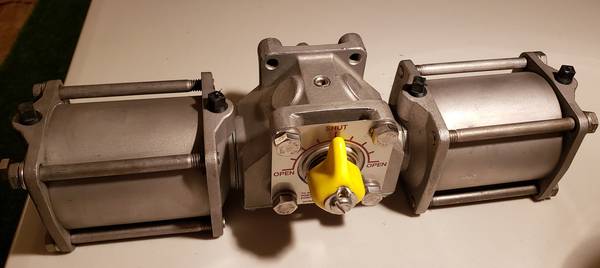

Morin 316 Stainless Steel Actuator - New Surplus (BIFFI, Emerson) - $475 (Penfield)
QR Code Link to This Post
316 Stainless Steel; Housing, End Caps, Cylinders & Pistons
17-4PH Stainless Steel: Scotch Yoke
440C Stainless Steel: Scotch Yoke Roller Bearings
PTFE Composite: Scotch Yoke Bearings
PTFE: Piston & Piston Rod Bearings

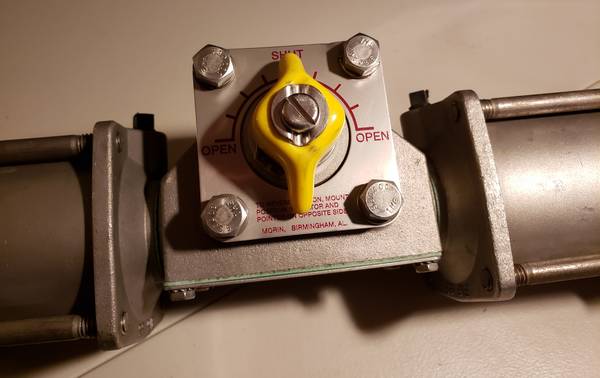

Adjustable Bi-Directional Travel Stops
Max. Supply Pressure: 160 PSI, DOM: 42/14
Torque Output: 172 Ft-Lbs @ 120 PSIG (Start/End), 117 Ft-Lbs. (Minimum)
129 Ft-Lbs @ 100 PSIG (Start/End), 88 Ft-Lbs. (Minimum)
Overall Dimensions: 3.91"W x 14.47"L x 4.83"H, Weight: 11 lbs.
Excellent Condition! Just needs to be dusted off.
NOTE: IN STOCK NOW.
Excellent Condition! Just a few scratches from sitting on warehouse shelf.
Reducing Inventory, My Loss, Your Gain!!
Replacement Cost: $1,850.00 (New)
YOUR COST ONLY: $475.00 (New Surplus)
