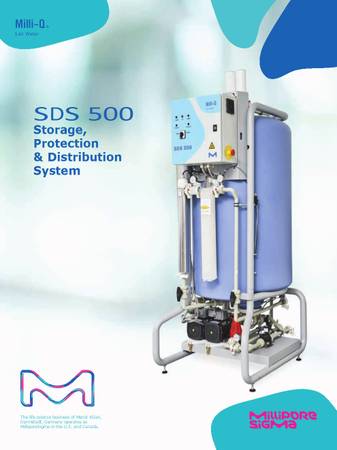

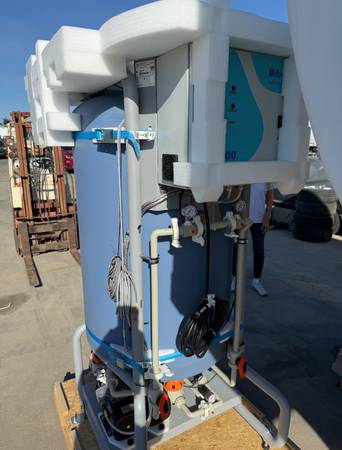

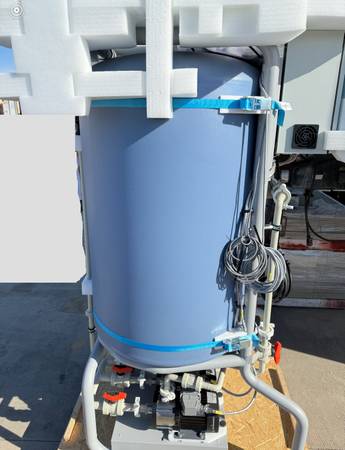

Millipore Milli-Q Pure Lab Water SDS 500 - New Surplus - $17,975
QR Code Link to This Post

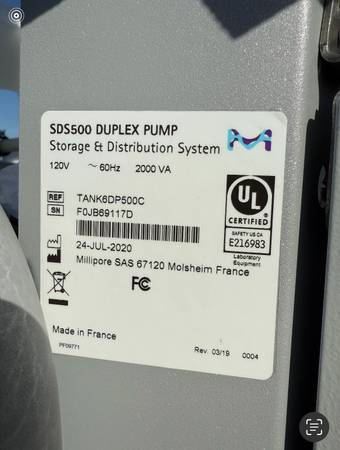

Duplex Pump Storage & Distribution System, 120V-60Hz-1Ph
Catalog No.: TANK6DP500C, S/N: F0JB69117D
Mfgrd: 24-JUL-2020
Millipore SAS 67120 Molsheim France
UL Certified, Safety US CA: E216983, Laboratory Equipment

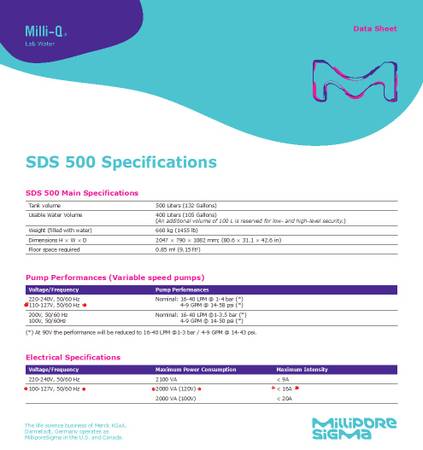

SDS 500 Specifications:
Tank Volume: 500 Liters (132 Gallons)
Usable Water Volume: 400 Liters (105 Gallons)
(An additional volume of 100 L is reserved for low- and high-level security.)
Weight (filled with water): 660 kg (1455 lbs)

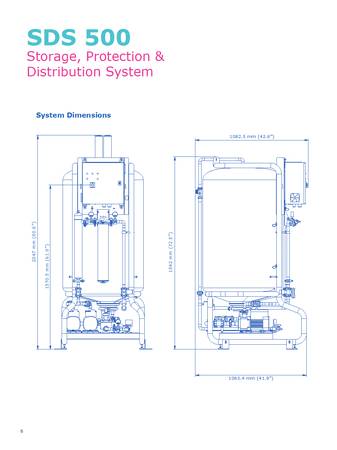

Dimensions: 2047H × 790W × 1082D mm; (80.6"H × 31.1"W × 42.6"D)
Floor space required: 0.85 m2 (9.15 ft2)
Pump Performances (Variable speed pumps):
Voltage/Frequency: 120V, 60 Hz
Nominal: 16-40 LPM @ 1-4 bar
4-9 GPM @ 14-58 psi
Electrical Specifications:
Voltage/Frequency: 120V, 60 Hz
Max Power Consumption: 2000 VA (120V)
Max Intensity: < 16A

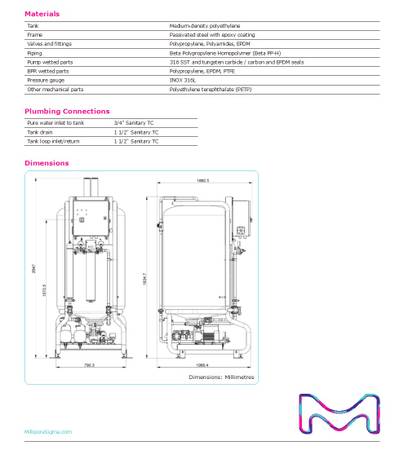

Materials of Construction:
Tank: Medium-density polyethylene
Frame: Passivated steel with epoxy coating
Valves and fittings: Polypropylene, Polyamides, EPDM
Piping: Beta Polypropylene Homopolymer (Beta PP-H)
Pump wetted parts: 316 SST and tungsten carbide / carbon and EPDM seals
BPR wetted parts: Polypropylene, EPDM, PTFE
Pressure gauge: INOX 316L
Other mechanical parts: Polyethylene terephthalate (PETP)
Plumbing Connections:
Pure water inlet to tank: 3/4" Sanitary TC
Tank drain: 1 1/2" Sanitary TC
Tank loop inlet/return: 1 1/2" Sanitary TC
Normal Selling Price: $35,940.00
YOUR COST: $17,975.00 NEW O.B.O.
