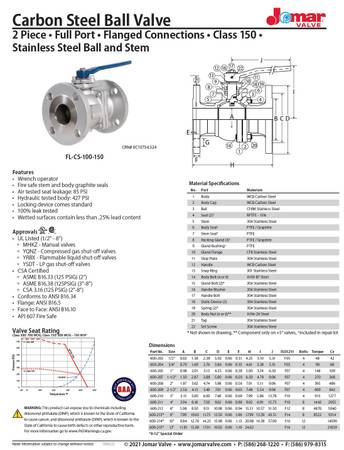

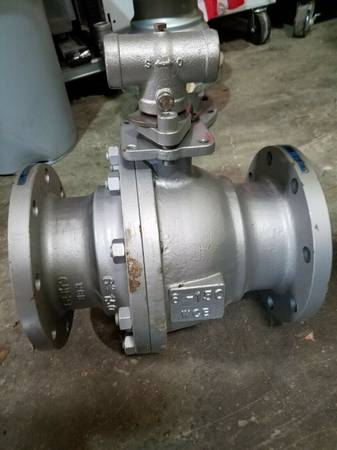

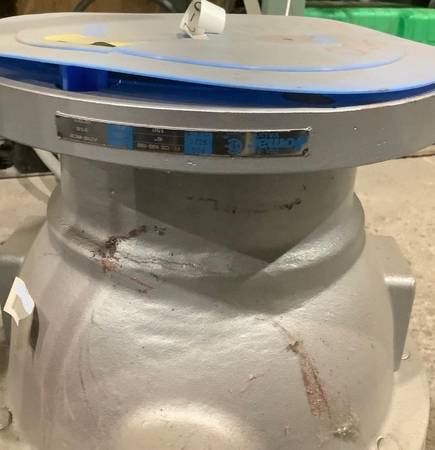

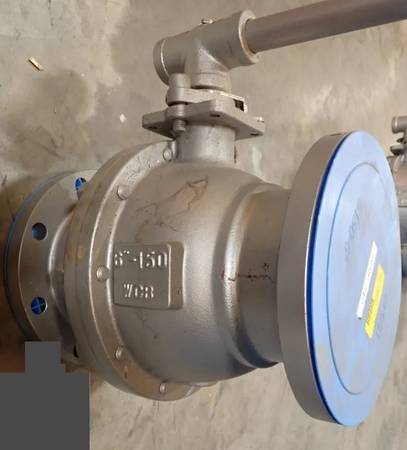

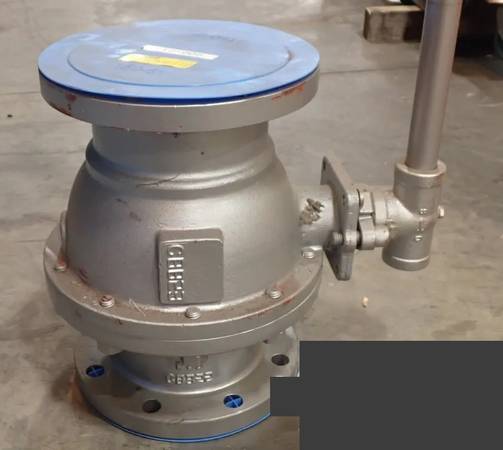

Jomar 6" Carbon Steel API607 Ball Valve - New Surplus, Qty 15 - $575
QR Code Link to This Post

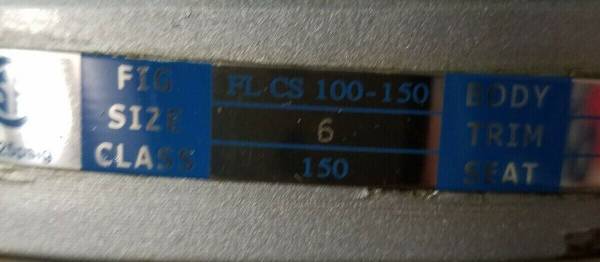

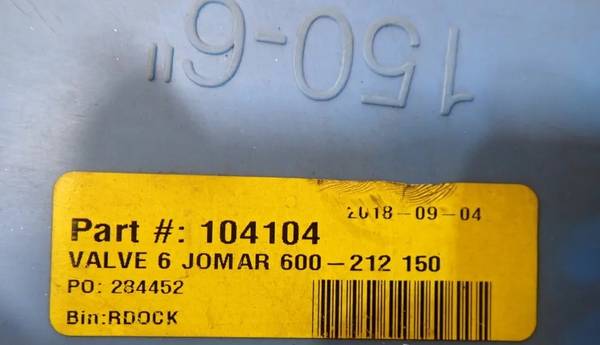

P/N: 600-212, FIG No.: FL-CS-100-150
Full Port, Cv = 5040

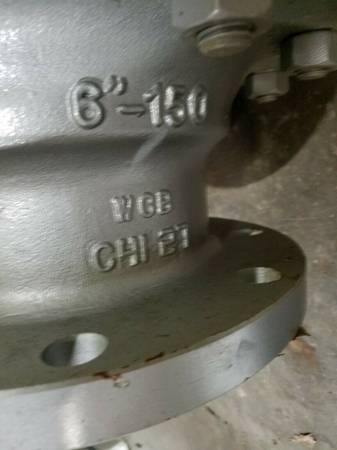

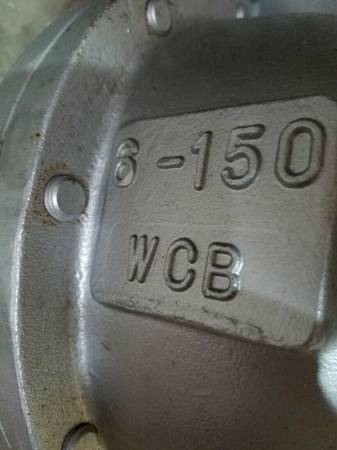

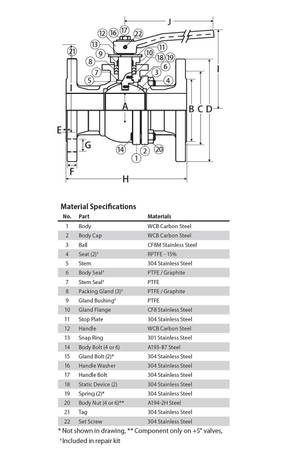

Body: WCB Carbon Steel, 2-Piece
Ball: CF8M Stainless Steel
Seats (2): RPTFE - 15%
Stem: 304 Stainless Steel
Body Seal: PTFE/Graphite
Stem Seal: PTFE
Packing Gland (3): PTFE/Graphite
Gland Bushing: PTFE
ANSI 150 Flanges
ISO5211, F12 Mounting
Torque: 4870 In.-Lbs
Face-to-Face (H): 15.51"
Handle (WCB) Length: 31.5"
Handle Has Standard "Locking Device"
BAA Compliant: Buy American Act

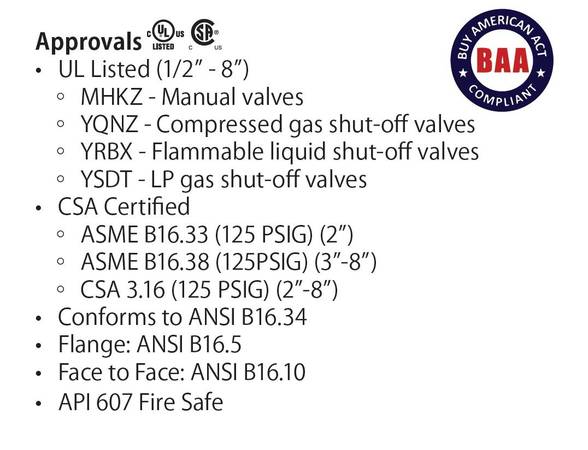

Approvals:
UL Listed
CSA Cerified: ASME B16.38 (125 PSIG)

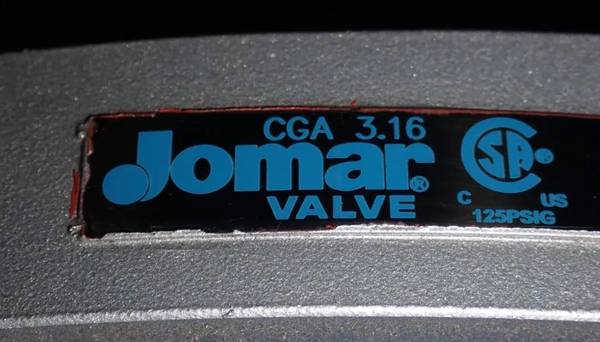

CSA 3.16 (125 PSIG)
Conforms to ANSI B16.34
Flange: ANSI B16.5
Face-To-Face: ANSI B16.10

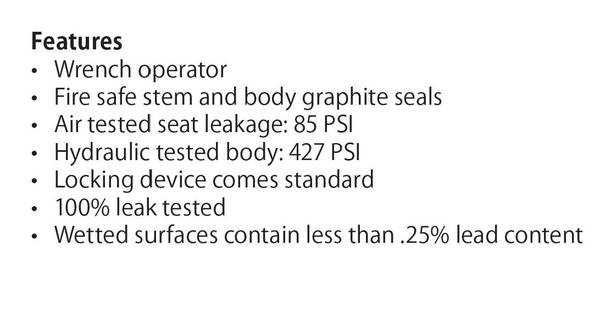

API 607 Fire Safe (Stem & Body Graphite Seals)
Air Tested Seat Leakage: 85 PSI
Hydraulic Tested Body: 427 PSI
Shipping Weight: 150 lbs.
Replacement Cost: $2,067.23/Each (New)
Your Cost Only: $575.00/Each! (New Surplus)
Qty 15 Available, In Stock
