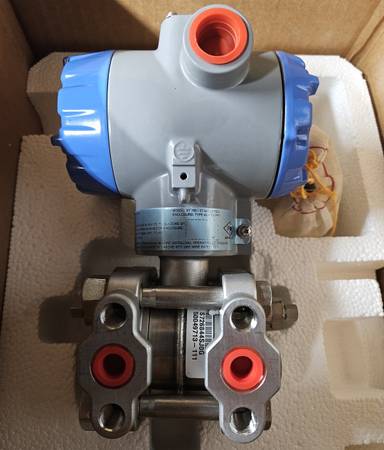

Honeywell STD820 Differential Pressure Transmitter (0-100" H2O) NEW - $575 (Penfield)
QR Code Link to This Post
Model: STD820-E1HS6AS-1-A-CHE-11S-A-30A0-00-0C00
STD820: Differential Pressure Transmitter
Measurement Range: URL: 400 In. H2O, LRL: -400 In.H2O,
Max. Span: 400 In. H2O, Min. Span: 1.0 In. H2O
E: Process Head: 316 SS, Diaphragm: 316L SS
1: Fill Fluid: Silicone Oil 200
H: Process Connection: 1/2" NPT Female (Matls to match Head & Head Bolts)
S: Bolt/Nut: 316 SS
6: Head Type: Dual Ended, Vent Type: Std Vent/Plug, Location: Side/End, Vent: 316 SS
A: Gasket: Teflon or PTFE (Glass Filled)
S: Static Pressure: 4500 PSIG (315 bar)
1: Head/Connect Orientation: Std., High Side Left, Low Side Right, Std Head Orientation
A: Approvals: FM Explosionproof, Intrinsically Safe, Non-Incendive, & Dustproof
C: Electronic Housing: Polyester Powder Coated Aluminum, Conn: 1/2" NPT
Lightning Protection: Yes
H: Analog Output: 4-20mA DC, Digital Protocol: HART Protocol
E: Customer Interface: Indicator: Advanced,
Ext Zero, Span & Config Buttons: Yes, Languages: EN,GE,FR,IT,SP,RU,TU
1: Application Software: Standard Diagnostics
1: Output Limit, Failsafe & Write Protect Settings: Write Protect: Disabled,
Fail Mode: High>21.0mAdc, High & Low Output Limits: Honeywell Std
(3.8-20.8 mADC)
S: General Configuration: Factory Standard
A: Accuracy: Standard, Calibrated Range: Factory Std, Calibration Qty:
Single Calibration
3: Mounting Bracket Type: Angle Bracket, Material: 316 SS
0: Customer Tag Type: No Customer Tag
A0: No Conduit Plugs or Adapters Required
00: Certifications & Options: None - No Additional Options
0C00: Mfgrg. Specials: Factory ID
NOTE: Replacement Cost: $5,320.00 NEW
YOUR COST: $575.00 NEW SURPLUS O.B.O.
UNUSED SURPLUS IN ORIGINAL FACTORY HONEYWELL BOX.
